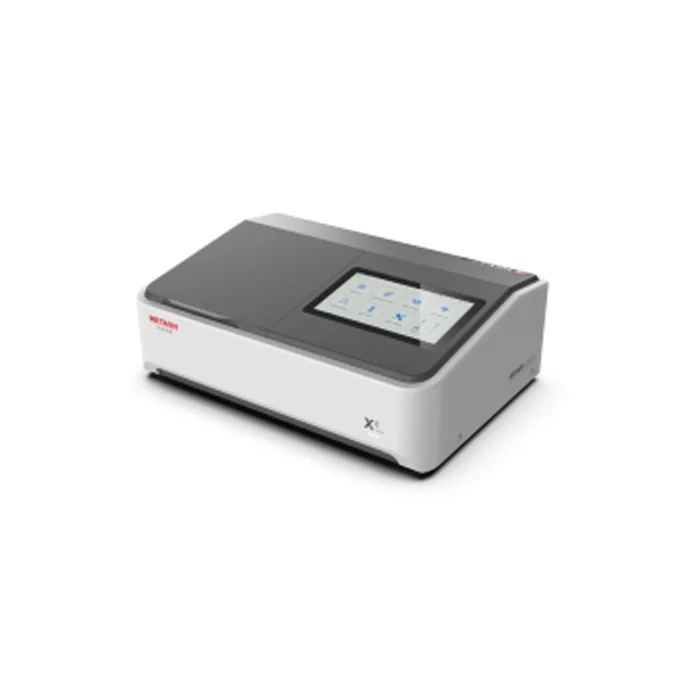

UV-Visible (UV-Vis) spectrophotometer is one of the most fundamental instruments in analytical laboratories. Among the various types of UV-Vis spectrophotometers, the single beam spectrophotometer is widely employed due to its simplicity, affordability, and effectiveness in conducting qualitative and quantitative analysis of samples. Despite the emergence of more advanced double beam instruments, single beam spectrophotometers remain indispensable in academic, industrial, environmental, and pharmaceutical settings. In this blog post, as a high performance laboratory analytical equipment manufacturer, Metash will share the role of single beam UV Visible spectrophotometer in sample measurement, including its working principle, operation, etc.
Working Principle of Single Beam UV Visible Spectrophotometer
The fundamental principle behind UV-Vis spectrophotometry is Beer-Lambert' s Law, which states that the absorbance (A) of a sample is directly proportional to the concentration (c) of the absorbing species and the path length (l) of the sample cell:
A=εcl
Where:
• A = Absorbance (unitless)
• ε = Molar absorptivity or extinction coefficient (L·mol⁻¹·cm⁻¹)
• c = Concentration of the analyte (mol/L)
• l = Path length of the cUVette (cm)
UV-Vis spectrophotometers operate in the ultraviolet (200–400 nm) and visible (400–800 nm) regions of the electromagnetic spectrum. The spectrophotometer measures how much light is absorbed by the sample at specific wavelengths, and this absorbance is used to identify or quantify compounds in solution.
Components and Operation of Single Beam UV Visible Spectrophotometer
A single beam UV-Vis spectrophotometer has a relatively straightforward optical path compared to its double beam counterpart. The main components include:
1. Light Source:
Typically consists of two lamps – deuterium lamp for UV region and tungsten-halogen lamp for the visible region.
2. Monochromator:
Used to isolate specific wavelengths of light from the broadband source. It generally includes a diffraction grating or prism and entrance/exit slits.
3. Sample Holder (CUVette Compartment):
Holds the cUVette containing the liquid sample. Standard cUVettes have a path length of 1 cm.
4. Photodetector:
Converts transmitted light into an electrical signal. Silicon photodiodes are commonly used.
5. Readout System:
Displays absorbance, transmittance, or concentration values. Modern instruments feature digital interfaces and can be connected to data processing software.
In a single beam configuration, the instrument measures light intensity before and after it passes through the sample. First, a blank measurement (usually solvent only) is taken to establish a baseline. The sample is then measured, and the absorbance is calculated by comparing the intensity of transmitted light (I) to the intensity of the incident light (I₀):
A=−log10(I/I0)
Sample Measurement Using Single Beam Spectrophotometer
1. Blank Calibration:
A blank cuvette with only the solvent is inserted to zero the instrument. This compensates for any absorbance due to the solvent or cUVette.
2. Wavelength Selection:
The user selects an appropriate wavelength, typically corresponding to the maximum absorbance (λ_max) of the analyte, which provides the greatest sensitivity.
3. Sample Insertion:
The cUVette with the sample is placed in the same orientation as the blank. The instrument measures the intensity of transmitted light, and absorbance is calculated.
4. Data Analysis:
The absorbance data can be plotted against concentration (calibration curve), wavelength (spectral scan), or time (kinetic studies) depending on the application.
Applications of Single Beam UV Visible Spectrophotometer in Analytical Laboratories
1. Quantitative Analysis
Quantification of analyte concentration is the most common use. Using calibration curves generated from standard solutions, unknown concentrations can be determined with high accuracy. This is widely used in:
• Pharmaceutical dosage analysis
• Water quality monitoring (e.g., nitrate, phosphate, heavy metals)
• Food and beverage testing (e.g., color additives, antioxidants)
2. Qualitative Analysis
Spectral scans provide absorbance spectra of compounds, enabling identification based on characteristic absorbance peaks. This is useful in:
• Compound verification
• Determination of purity
• Detection of contaminants
3. Kinetics Studies
By measuring changes in absorbance over time, reaction kinetics can be studied. This is applicable in:
• Enzymatic reaction monitoring
• Degradation studies
• Photochemical reactions
4. Colorimetric Assays
Colorimetric reactions that produce or alter color based on analyte concentration are ideally measured using single beam spectrophotometers, often in biochemical and clinical assays.
Advantages of Single Beam UV Visible Spectrophotometer
Despite their simpler design, single beam instruments offer several advantages:
• Cost-Effective: Ideal for laboratories with limited budgets.
• Ease of Use: Simplified optical design and user interface make it suitable for educational and training environments.
• Compact Design: Smaller footprint than double beam instruments.
• Adequate Accuracy: Suitable for many routine analytical applications, particularly when environmental conditions are stable.
Calibration and Maintenance of Single Beam UV Visible Spectrophotometer
Accurate sample measurement requires proper calibration and routine maintenance:
• Wavelength Calibration: Verified using standards such as holmium oxide or didymium filters.
• Photometric Accuracy Check: Validated with potassium dichromate or neutral density filters.
• Cleaning and Handling: CUVettes must be clean and handled by the frosted sides to avoid fingerprints, which can affect optical path.
• Lamp Replacement: Deuterium and tungsten lamps degrade over time and require periodic replacement to ensure consistent light output.
Role of Single Beam UV Visible Spectrophotometer in Modern Analytical Workflows
• USB connectivity for data export
• Built-in software for method development and result analysis
• Enhanced user interfaces with touchscreen controls
• Battery operation for field portability (in some models)
These improvements extend the usability of single beam UV-Vis spectrophotometers beyond traditional laboratory settings to on-site testing, educational outreach, and developing regions where resource constraints limit access to high-end instruments.
Conclusion
The laboratory single beam UV-Visible spectrophotometer remains a cornerstone of chemical analysis, offering a balance of simplicity, functionality, and cost-efficiency. While it may lack the robustness and precision of double beam systems, its effectiveness in performing accurate and reliable measurements under controlled conditions makes it an indispensable tool in countless analytical applications. Whether used in routine quality control, educational instruction, or field analysis, the single beam UV-Vis spectrophotometer continues to play a crucial role in the measurement and understanding of chemical samples across disciplines.
