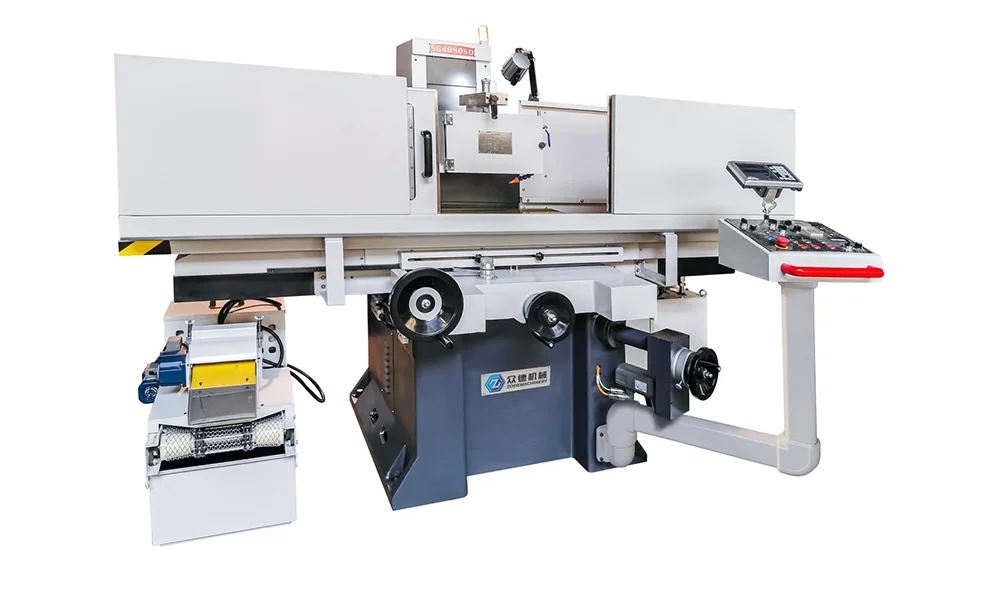

In the modern manufacturing landscape, surface grinding machines play a pivotal role in achieving high-precision flat surfaces and fine finishes in a wide array of industrial applications. Among the various configurations available, the single axis NC (Numerical Control) surface grinding machine has emerged as a cornerstone technology in precision machining workshops due to its balance between automation, operational simplicity, and precision performance. In this blog post, as a high performance automatic surface grinder supplier, Nantong Zode will share the product advantages of single axis nc surface grinding machine for sale, encompassing mechanical structure, control systems, operational efficiency, surface finish quality, and cost-effectiveness.
Single Axis NC Surface Grinding Machine Product Advantages
1. High Precision and Repeatability
One of the most compelling advantages of single axis NC surface grinding machines is their ability to produce highly accurate and repeatable results. Thanks to the integration of precision ball screws and linear guideways on the controlled axis—typically the vertical Z-axis or horizontal X-axis—the machine can achieve positioning accuracy in the range of ±1 μm or better, depending on the model and manufacturer.
The NC control system governs the movement of the single axis with high resolution feedback from linear encoders or rotary encoders, reducing mechanical backlash and hysteresis. This is crucial for industries such as mold making, semiconductor tooling, and aerospace component manufacturing, where surface flatness and dimensional tolerances are critical.
2. Operational Simplicity with Advanced Control
Unlike fully CNC grinding machines which may involve complex multi-axis programming, the single axis NC surface grinder offers simplified user interaction through dedicated NC control units or conversational programming interfaces. Operators can program depth of cut, number of passes, spark-out passes, feed rates, and retraction heights through intuitive menus or parameter setting pages.
For small to medium production runs or tool room operations, this setup strikes the ideal balance—providing automation and repeatability without necessitating full G-code programming or CAD/CAM integration. Some machines also offer teach-in or manual data input (MDI) modes, which streamline job setup and shorten cycle times for prototype or low-volume tasks.
3. Robust and Thermally Stable Machine Structure
The mechanical design of single axis NC surface grinding machines is optimized for rigidity and thermal stability. The main components, such as the machine bed, column, and spindle housing, are typically constructed from high-grade cast iron with a box-type structure. This minimizes vibration and deformation under load.
Thermal distortions, which can significantly affect grinding accuracy, are mitigated through design features such as:
* Symmetrical machine layout to equalize thermal expansion
* Isolated spindle motor heat zones
* Coolant circulation systems around the grinding wheel and work table
* Optional refrigerated coolant systems
These structural and thermal considerations ensure consistent dimensional accuracy even during extended grinding operations.
4. Precision Spindle System
The grinding spindle is the heart of any surface grinding machine. In single axis NC grinders, the spindle assembly is often supported by high-precision angular contact ball bearings or hydrostatic/hydrodynamic bearings, allowing for high rotational stability with minimal runout.
These spindles are capable of running at speeds ranging from 1,500 to 3,600 RPM, optimized to drive various grinding wheel diameters typically ranging from Ø180 mm to Ø400 mm. Proper spindle balance and vibration damping contribute directly to achieving mirror-like surface finishes and prolonging grinding wheel life.
5. Versatility in Workpiece Handling
Although designed with a single NC axis, these machines are capable of handling a wide range of workpieces, including flat plates, precision molds, hardened tools, and even small automotive parts. Manual or semi-automatic table feeds (Y-axis) and handwheel-controlled cross slides (X-axis) offer sufficient flexibility for most flat surface grinding tasks.
Many single axis NC grinders come equipped with electromagnetic chucks, vacuum chucks, or custom fixtures, which enable secure and repeatable clamping of diverse material types such as hardened steel, carbide, aluminum, and ceramic substrates.
6. Consistency in Surface Finish Quality
Achieving consistent and superior surface finish is a critical benchmark in surface grinding. The combination of rigid machine design, precision feed control, and high-quality grinding wheels allows single axis NC grinders to deliver surface roughness values (Ra) below 0.2 μm under optimized conditions.
Advanced NC functions, such as dwell time control (spark-out cycles), incremental depth cutting, and programmable dressing cycles, further improve surface quality and reduce burn marks, chatter, and irregularities.
7. Optimized for Tool Room and Maintenance Applications
The compact footprint and relatively low cost of single axis NC surface grinding machines make them ideally suited for tool rooms, die maintenance departments, R\&D labs, and small-scale production environments. These machines offer:
* Fast setup and changeover
* Low training requirements
* Minimal maintenance needs
* Integration with manual inspection and metrology workflows
This makes them an economical and practical choice for businesses that require high-precision grinding without the overhead of full CNC infrastructure.
8. Efficient Dressing and Coolant Management Systems
Modern single axis NC grinders incorporate programmable wheel dressing systems that allow for automatic dressing of the grinding wheel based on time or grinding distance. This feature reduces downtime, ensures consistent wheel sharpness, and contributes to superior finish quality.
In addition, coolant systems are typically integrated with multi-stage filtration units, mist collectors, and coolant pumps capable of delivering high flow rates to the grinding zone. Effective coolant management not only cools the workpiece but also flushes away swarf and abrasive particles, extending tool and machine life.
9. Reduced Labor Dependency and Improved Safety
By automating the critical axis involved in depth control and feed rate, single axis NC machines reduce operator fatigue and the risk of human error. Features like:
* Automatic wheel dressing
* End-of-cycle alerts
* Emergency stop systems
* Enclosed guarding and splash covers
ensure a safer working environment while maintaining high output quality. These safety features comply with international standards such as CE or ISO 23125, depending on the manufacturer.
10. Cost-Effectiveness and ROI
Single axis NC surface grinding machines are significantly more cost-effective compared to full CNC grinding systems, making them a favorable option for businesses seeking automation within budget constraints. The lower initial investment, combined with minimal maintenance costs, rapid learning curve, and versatility, results in a fast return on investment (ROI), especially in maintenance shops, mold repair units, and custom tooling services.
Furthermore, the availability of local or regional service support, low-cost spare parts, and modular upgrades (e.g., digital readout systems or axis servo upgrades) enhances long-term usability and productivity.
Conclusion
The single axis NC surface grinding machine is a critical tool in precision machining that offers a unique synergy of automation, accuracy, and user-friendly operation. With its robust mechanical construction, precision spindle system, advanced control interface, and application versatility, it stands as an indispensable asset in industries ranging from mold and die manufacturing to precision tool grinding and small-batch part production.
While it does not offer the multi-axis flexibility of full CNC machines, the single axis NC surface grinder delivers an excellent balance of precision, performance, and price, making it the ideal solution for businesses aiming to elevate their surface grinding capabilities without overcomplicating their workflow. Whether used in small-scale industrial settings or larger manufacturing ecosystems, its value proposition remains solid and future-ready.
