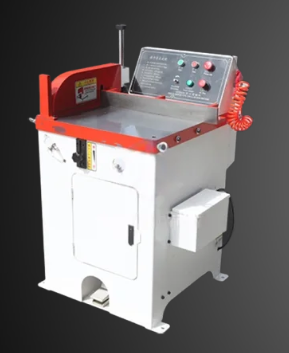

The NC semi-automatic aluminum cutting machine, manufactured by Zhangjiagang Zhongrui Automation Equipment Co., Ltd., is designed for precise and efficient cutting of aluminum materials. Its advanced CNC system, durable cutting head, and stable worktable ensure high-quality results for various industrial applications. This guide provides a detailed step-by-step overview of the operation process, from preparation to post-processing, helping operators achieve optimal performance while ensuring safety.
1. Preparation Before Operation
Before starting the machine, the operator must perform a series of checks and preparations to ensure safe and efficient operation:
-
Machine Inspection: Check all components, including the CNC system, electrical connections, cutting head installation, worktable condition, and clamps. Ensure everything functions properly.
-
Tool Selection: Choose the appropriate cutting tool according to the aluminum material type, thickness, and required cutting precision.
-
Material Placement: Place the aluminum sheet or profile on the worktable and secure it firmly using the provided clamps to prevent movement during cutting.
-
Parameter Setting: Determine suitable cutting parameters, such as spindle speed, feed rate, and cutting depth, based on the aluminum material specifications.
2. Programming and Input
The NC semi-automatic aluminum cutting machine allows programming through a computer software interface or directly via the machine’s control panel:
-
Computer Software Programming:
-
Open the cutting software and create a new project.
-
Draw the desired cutting shapes, such as straight lines, rectangles, or circles.
-
Set cutting paths, tool selection, feed rate, and spindle speed.
-
Simulate the cutting process to check for errors before execution.
Control Panel Input:
-
Familiarize yourself with the buttons, touchscreen, and display functions on the panel.
-
Input simple cutting commands, specifying coordinates, speed, and feed rate.
-
Confirm the program before starting the cutting process.
Example: For a rectangular aluminum plate, input coordinates of the four corners and set the cutting speed according to the material thickness.
3. Cutting Process
Once the program is set, the machine begins the cutting operation:
-
Automatic Movement: The cutting head follows the programmed path with high precision, moving along X, Y, and Z axes as required.
-
Heat and Debris Management: During cutting, heat and aluminum chips are generated. The machine’s built-in dust and chip collection system ensures a clean working environment.
-
Monitoring: Operators must continuously monitor the cutting process, checking for proper cutting quality, edge smoothness, and dimensional accuracy.
-
Error Handling: In case of deviations, such as a jammed cutting head or misaligned path, immediately pause the machine and adjust as necessary to prevent material damage or machine failure.
4. Post-Processing and Maintenance
After cutting is complete, follow these steps to ensure material quality and machine longevity:
-
Material Removal: Carefully remove the cut aluminum pieces from the worktable.
-
Cleaning: Clear all chips and debris from the machine and worktable.
-
Edge Finishing: If necessary, smooth the edges and remove burrs to achieve a high-quality finish.
-
Routine Maintenance: Inspect the cutting tools, clamps, and machine components for wear. Regular maintenance ensures consistent performance and extends the machine’s lifespan.
Operating an NC semi-automatic aluminum cutting machine requires careful preparation, precise programming, and attentive monitoring during cutting. By following this guide, operators can achieve efficient and accurate aluminum cutting, ensuring high-quality results for a wide range of industrial applications. The advanced design of Zhangjiagang Zhongrui Automation Equipment Co., Ltd.’s machine guarantees both reliability and safety for professional users.
