You have an important choice to make for your project: Cable Trays vs. Conduit. Pick cable trays if you want something flexible and easy to take care of. Cable trays also cost less and are simple to change later. Choose conduit if you need the most protection, which is crucial in tough or dangerous places. Think about these factors before you make your decision:

• Cost

• How easy it is to install

• How much protection you need

• If you will need to change it later

• Aesthetic considerations

• Local regulations you must adhere to

• Safety

There are many types of cable trays available to meet different needs.

Key Takeaways

• Pick cable trays if you want more flexibility. They are easy to take care of. You can change things quickly with them. They help you spend less on labor.

• Use conduit when you need the most protection. It keeps cables safe from water and dust. It also stops cables from getting damaged.

• Think about how fast you need to install. Cable trays can be put in much faster than conduit. This helps you finish your work sooner.

• Look at where your project is. Cable trays are good for indoor places. Conduit works better in tough or rough areas.

• Always look at local rules. Following them keeps things safe. It also makes sure your cable system is set up right.

Cable Trays vs. Conduit Overview

What Are Cable Trays?

Cable trays help hold and organize cables in buildings. They make a clear path for cables. This stops cables from getting tangled or broken. Cable trays have holes that let heat out. This keeps cables from getting too hot. You can see cable trays in factories, offices, and network rooms. It is easy to add or take out cables with cable trays.

Here are some main jobs of cable trays in cable management systems:

• Hold and organize cables to keep things safe and neat.

• Let heat move away from cables so they do not get too hot.

• Keep dust and water away from cables.

• Make it easy to put in and fix cables because you can see them.

• Lift cables above the floor to help protect them in a fire.

• Let you change your setup if you need to.

There are many kinds of cable tray systems you can pick. Ningbo Pudeli Cable Tray Co., Ltd. has many products. They have stainless steel trays, ladder-type trays, fire-resistant trays, and more. Their skilled team and good machines help them make strong cable trays for many jobs.

What Is Conduit?

A conduit is a tube that keeps wires safe and in place. You use conduit when you need strong safety for your cables. Conduit keeps cables safe from water, dust, and getting hurt. It also stops electromagnetic interference, which is important for some cables.

You see conduit in places where safety matters most. It works well in tough places, like factories or outside. Conduit can be made of metal or plastic. You can hide it in walls or ceilings to make things look neat.

Here is a table that shows the main differences between cable tray and conduit:

Feature	Cable Trays	Conduit
Installation Speed	Fast and easy	Slower, more steps
Maintenance	Simple access	Harder to reach cables
Flexibility	Easy to add or remove cables	Not easy to change cables
Heat Dissipation	Good, open design	Limited, can trap heat
Physical Protection	Basic protection	Strong protection from hazards
EMI Shielding	Minimal	Very good, especially with steel
Fire Protection	Some, lifts cables	Excellent, resists high heat

When you look at cable trays and conduit, you see each has good points. Pick the one that works best for your project’s cable needs, safety, and changes you might make later.

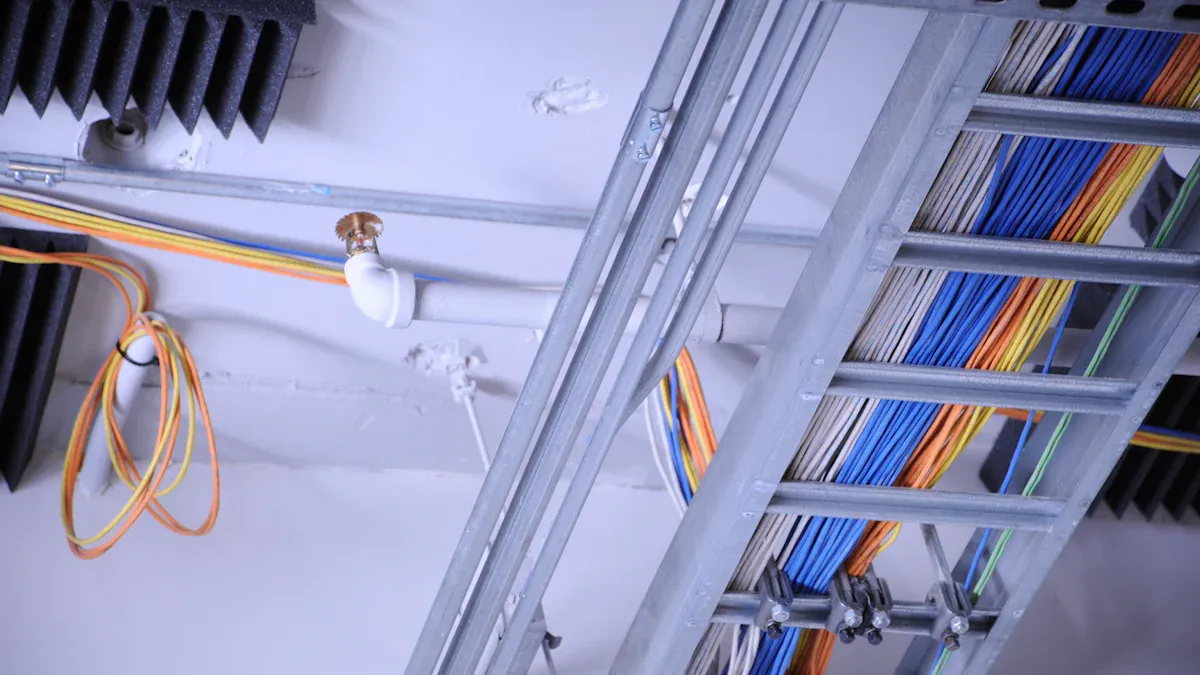

Cable Tray Types and Features

Common Cable Tray Types

You can find many types of cable trays in different projects. Each type has a special use. Here are some of the most widely used cable tray types in industrial settings:

1. Ladder Cable Tray

2. Perforated Cable Tray

3. Wiremesh Cable Tray

4. Raceway Cable Tray

5. Stainless Steel Cable Tray

6. Aluminum Cable Tray

7. Electrical Cable Tray

8. Solid Bottom Cable Tray

9. Channel Cable Tray

You might see these cable trays in factories, offices, or even data centers. Each one helps you organize and protect your cable in a unique way.

Key Features of Cable Trays

Cable trays stand out because they support many kinds of cable, such as power, signal, and communication cable. The open design of a cable tray lets you install and move cables easily. This feature makes cable trays a smart choice if you need to change your setup often.

You should always think about where you will use the cable tray and what kind of cable you need to support. The National Electrical Code (NEC) gives rules about how much cable you can load into a tray and what types are allowed. These rules help you pick the right cable trays for your project.

Tip: If you expect to add or remove cables often, cable trays make the job much easier than other systems.

When you choose cable trays, you get a flexible and reliable way to manage your cables. You can find many options to fit your needs, from stainless steel to aluminum, and from ladder to solid bottom designs.

Conduit Types and Features

Common Conduit Types

You can choose from several types of conduit for your project. Each type works best in certain places and for specific needs. Here are the most common conduit types you will see in commercial and industrial settings:

1. Rigid Metal Conduit (RMC): This type is very strong. You use it outdoors or in factories where you need extra protection.

2. Intermediate Metal Conduit (IMC): IMC is lighter than RMC. It gives good protection for cables in many buildings.

3. Electrical Metallic Tubing (EMT): EMT is light and easy to bend. You often see it inside walls in offices and schools.

4. Rigid Nonmetallic Conduit (PVC): PVC does not rust. You use it outside or underground to keep cables safe from water.

5. Flexible Metal Conduit (FMC): FMC bends easily. You use it in tight spaces where straight conduit will not fit.

6. Liquidtight Flexible Metal Conduit (LFMC): LFMC keeps water out. You use it in wet places, like near pumps or outside.

You should pick the conduit type that matches your environment and the level of protection your cable needs.

Key Features of Conduit

Conduit systems protect your cable from many dangers. They keep wires safe from damage, water, and dirt. This helps your electrical system last longer and work better. You can see the main features of conduit in the table below:

Feature	Description
Material Properties	Made from metal or plastic, conduit gives strong protection and lasts a long time.
Design Features	Built to shield cable from wear and accidents.
Liquid Tight Seal	Some types, like LFMC, stop water from getting in.
Resistance to Hazards	Blocks moisture, dirt, and extreme temperatures to keep cable safe.
Flexibility	Flexible conduit bends around corners and fits in small spaces.
Flame Resistance	Some conduit types do not burn easily and can stop fires from spreading.
Grounding	Metal conduit can help ground your electrical system.
Corrosion Resistance	Plastic conduit does not rust and stands up to harsh weather.

Tip: Always check your local codes before you pick a conduit. This helps you make sure your cable system stays safe and follows the rules.

Cable Trays vs. Conduit: Key Differences

Installation Comparison

When you look at cable trays and conduit, you see they install differently. Cable trays let you put in cables fast. You do not need to bend or thread pipes. This saves time and helps your project go quicker. The Industrial Wire Systems Journal says cable trays can be put in 30–45% faster than conduit. You wait less and get your network or electrical work done sooner.

Feature	Cable Tray	Conduit
Installation Time	Faster (20–40% less labor)	Slower due to bending/threading

Cable trays are open and easy to use. You can place cables and change them easily. Conduit needs more steps. You must measure, cut, bend, and thread each piece. This makes conduit slower and harder to put in, especially for big jobs.

Tip: If you want your cabling project done fast, cable trays help you finish sooner.

Cost Factors

Cost is important when you pick cable trays or conduit. You need to think about both material and labor costs. Cable trays might cost more for materials, but you save money on labor. Conduit costs less for materials, but you pay more for labor because it takes longer to install.

Installation Method	Material Cost	Labor Cost	Total Cost
Conduit	$10,800	$11,300	$22,100
Cable Tray	$18,100	$4,900	$23,000

The total cost is almost the same. The big difference is how you spend your money. Cable trays help you save on labor. This helps you stick to your budget and finish your project on time. Always think about cost when you plan your cable setup.

Safety and Protection

Safety is very important in electrical work. You want to keep cables safe and protect people. Conduit gives the most protection. It covers cables and keeps out water, dust, and animals. This matters in places where you need strong protection.

Cable trays also keep cables safe. Many cable trays use fire-resistant coatings and are put near the ceiling to avoid flames. You can spray fire retardant on them to make them safer. These steps help stop fires and protect your network.

• Cable trays are made with fire safety in mind, like stopping fire from spreading between trays.

• Fire retardant sprays are used on cable trays that might catch fire.

• Cable trays are placed close to the ceiling to avoid flames and heat.

• Fire protection for cable trays is important for safety, helping stop fires before they spread.

Conduit works best in tough places. It protects cables from hits, chemicals, and bad weather. If you need the most protection, conduit is the best pick. Always think about safety and how much protection your project needs.

Maintenance and Flexibility

Cable trays are easier to check and fix than conduit. The open design lets you see and reach every cable. Over ten years, this makes taking care of cables simple and saves time.

Cable trays let you change and add cables as your business grows. You can change your setup without removing old trays. This means you can add new cables or move things as your network gets bigger. You do not need to spend a lot on changes.

• Cable trays can be changed to add more cables to new areas.

• They help keep cables neat as companies grow.

• You can make changes without lots of extra work.

• Cable trays make it easy to add new cables during building changes.

• They let you change things in the future, making your system flexible.

Conduit is not as flexible. If you want to add or change cables, you must pull out wires and sometimes cut or replace parts. This takes more time and work. For projects that need lots of changes, cable trays are better for easy management.

Note: If you compare cable tray and cable runway, both let you reach cables, but cable trays give more support and work for more cable types.

Application and Environment Suitability

Industrial and Commercial Use

Cable management systems are used in many places. Factories need to move power and data far. Cable trays help keep cables neat above machines. You can add or take out cables fast. This helps you change things when you need to. Offices and malls want everything to look clean. Conduit hides cables in walls or ceilings. This makes things look nice and keeps wires safe.

In factories, you need things to last a long time. Cable trays are easy to check and fix. They help cables stay cool. Conduit gives more protection from damage and chemicals. It keeps cables safe from water, sunlight, and bumps. You might need conduit if there is heavy equipment or if rules say so.

Tip: Always look at your local rules before you pick a system. Some places need conduit for safety.

Special Environments

Some places are very tough for cables. You might work in a chemical plant, food factory, or outside. Cable trays and conduit can handle hot, cold, spills, and bumps. These systems help keep cables safe and working.

Here is a table that shows how each system works in tough places:

Environment Factor	Cable Trays	Conduit
High Humidity	Good, but not as good as conduit	Excellent
Chemical Exposure	Needs special coatings	Very good protection
Extreme Temperatures	Handles heat well	Handles h http://www.cabletraymic.com Ningbo Pudeli Cable Tray Co., Ltd.
